Category: Education
Location: Firenze [ITALIA]
Year: 2019
Institution: Università degli Studi di Firenze Faculty of Architecture
Course: 2nd level Postgraduate Master’s Program “BIM for Collaborative Design Processes in New and Existing Buildings“
In the design process, the transition from concept design to the subsequent stages of design is a particularly delicate step. Within the BIM (Building Information Modelling) methodology, this transition is further complicated by technical difficulties arising mainly from the interoperability between the software packages used, which require specialised technical knowledge.
Data transfer between the two platforms is underdeveloped from a procedural standpoint and increases exponentially with the complexity of the geometries.
The aim of this thesis is to propose a method that resolves this transition, bypassing the interoperability issues between the software.

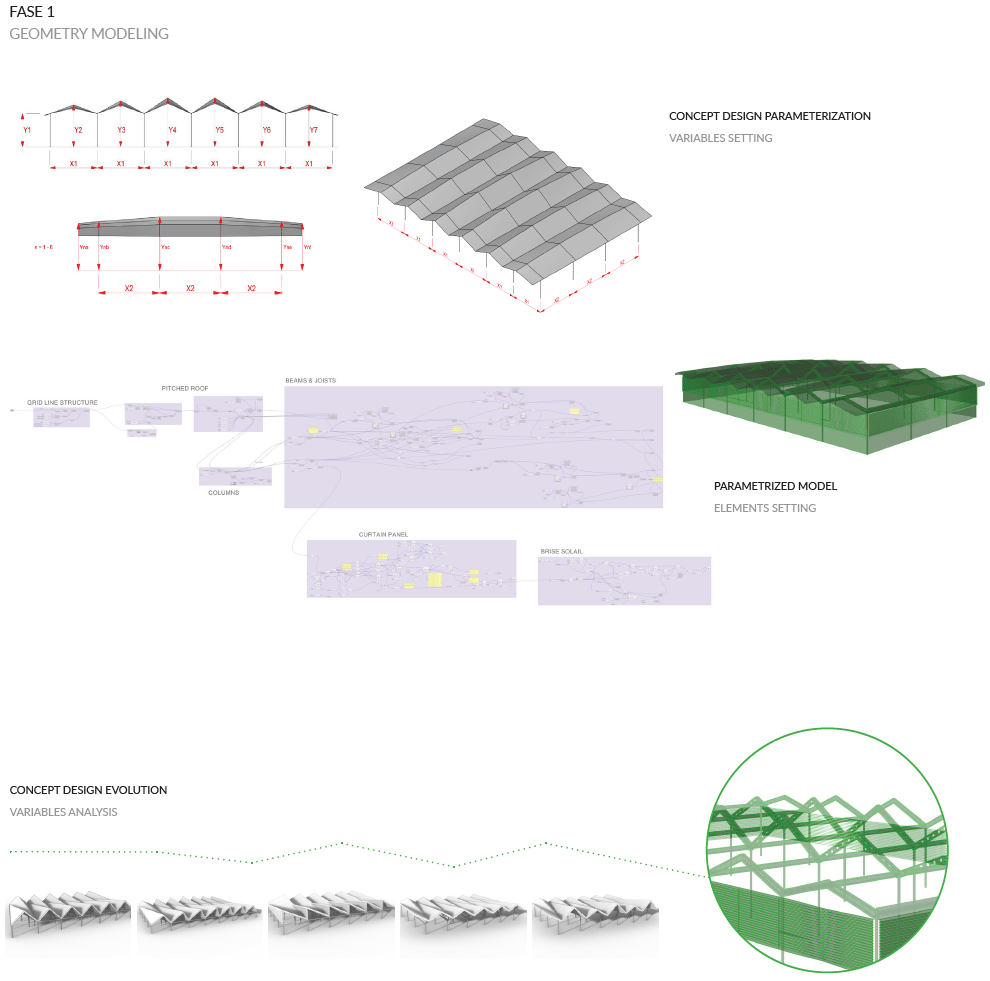

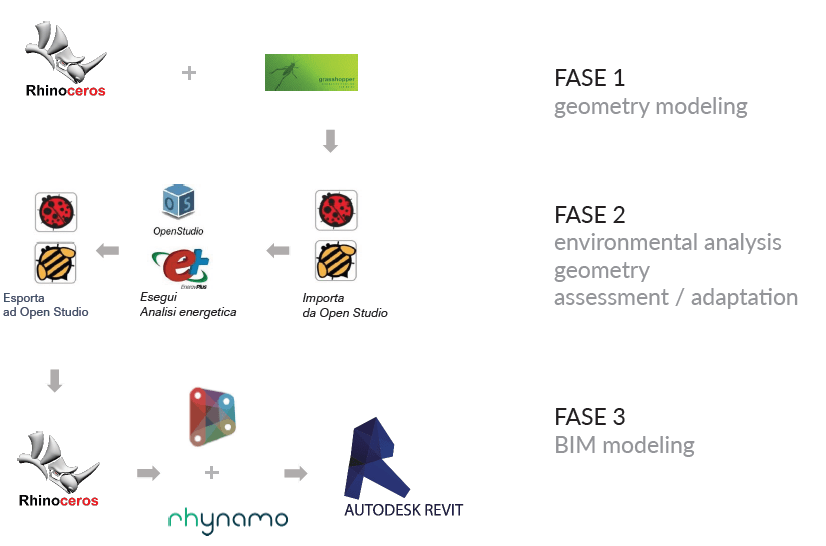

The concept design was developed using 3d modeling platforms Rhinoceros and Grasshopper, which allowed to parameterize the model in order to quickly explore and evaluate a considerable amount of design alternatives.

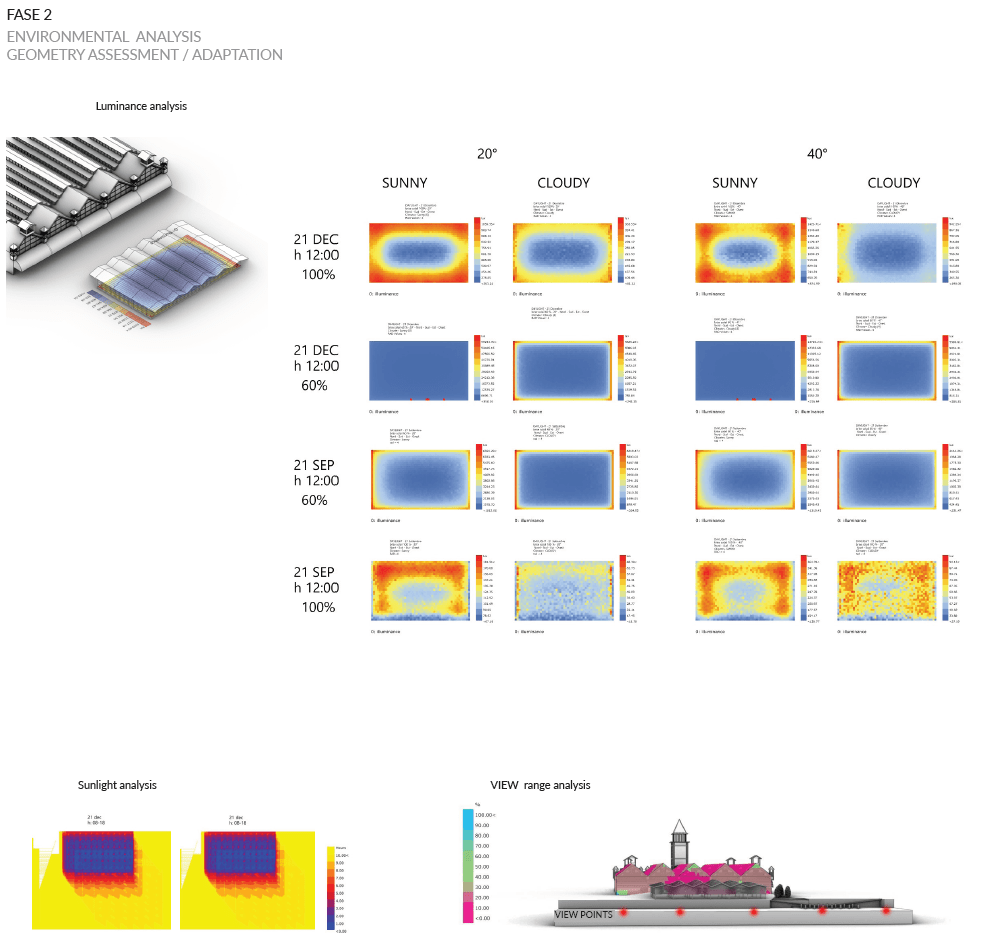

Once completed the first phase of geometric modeling follows a preliminary energy modeling of the building with the tools use of Honeybee & Ladybud, which connects the model to the Open Studio / Energy Plus / Radiance platforms.

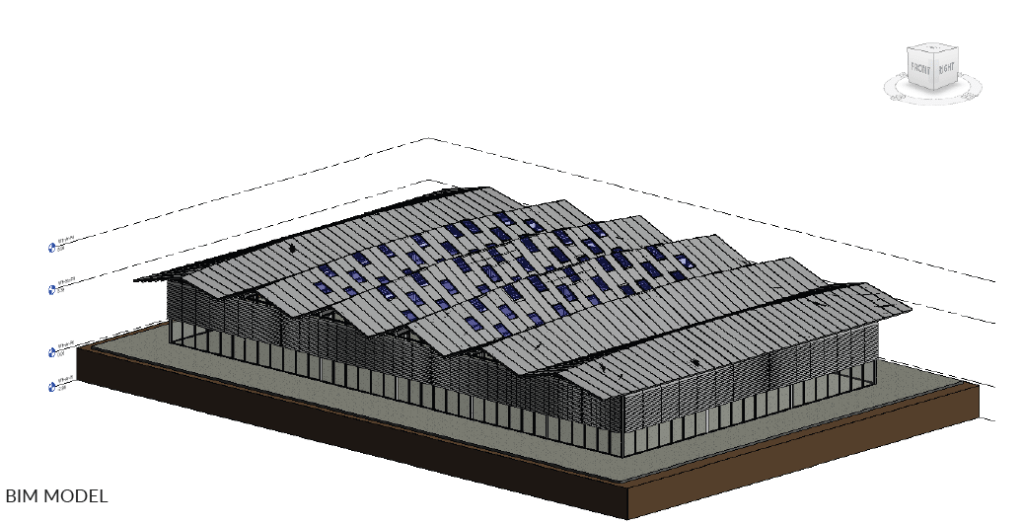

This step allows us to have a concept design perfectly inserted in the environmental system in which it is located and modeled according to aesthetic / formal / functional / environmental evaluations. The final concept design is inserted in the BIM authoring platform of Autodesk, Revit, through the use of the VPL Dynamo platform, thanks to the Rhynamo component, developed by Nathan Miller ( Proving Ground, form. CASE)

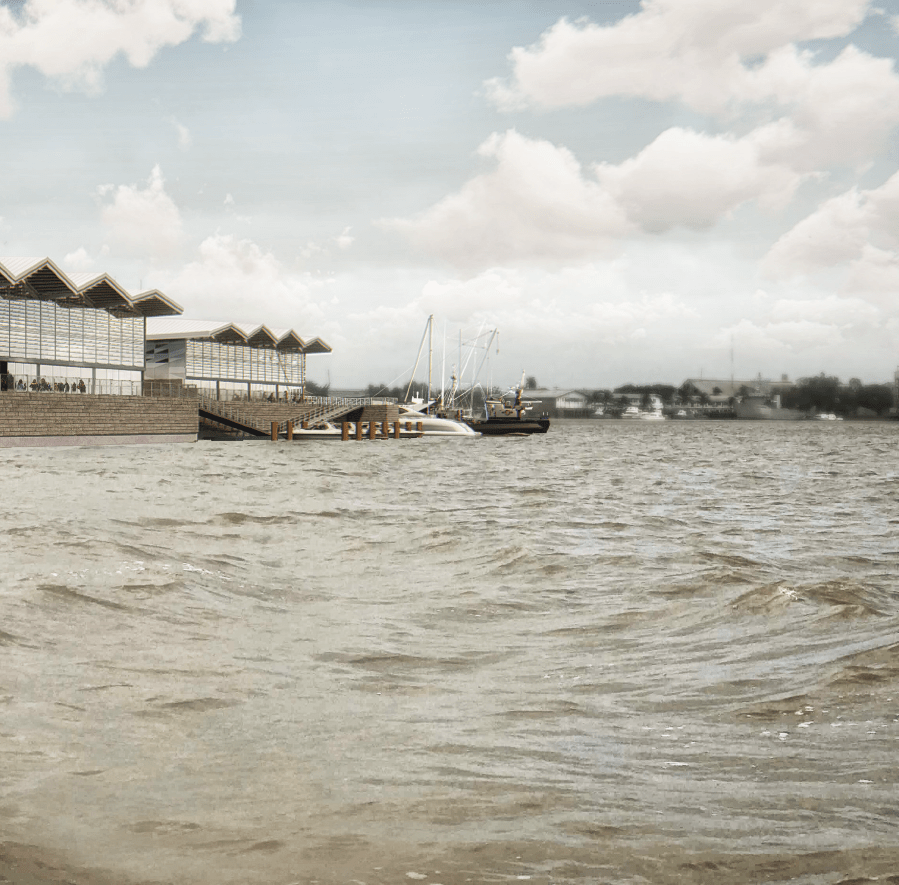

The case study used in this thesis concerns a project carried out by the architectural firm Rossiprodi Associati s.r.l. and relates to the preliminary design of three structures located in Georgetown, Guyana.
Once the concept design is finished we have to insert the architectural model created inside the
BIM environment, this is a quite delicate step,
you run the risk of losing information or repeating some processes.

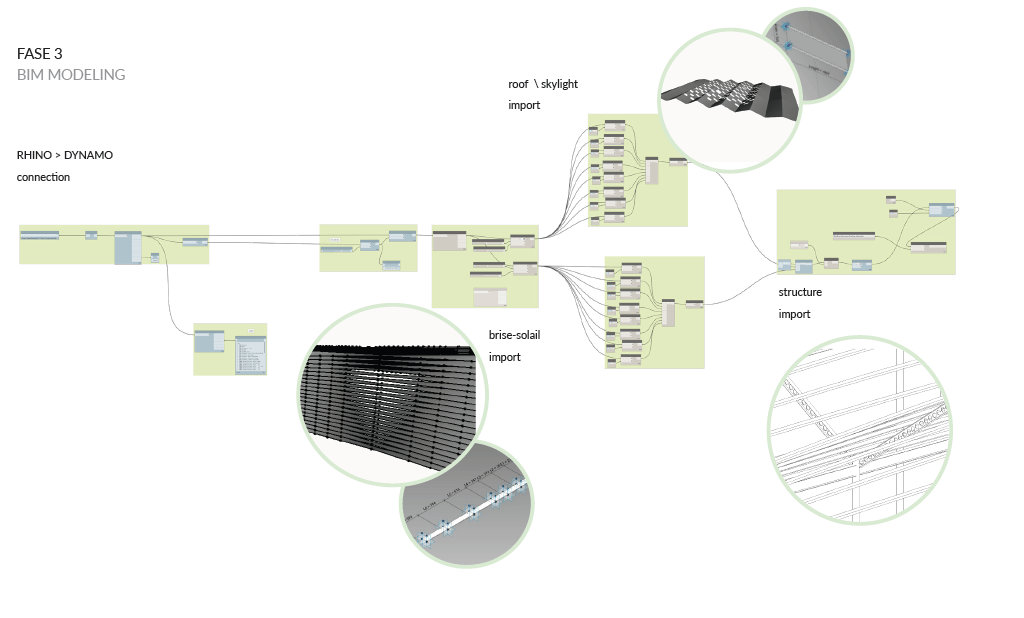

To transfer the concept design inside the Revit

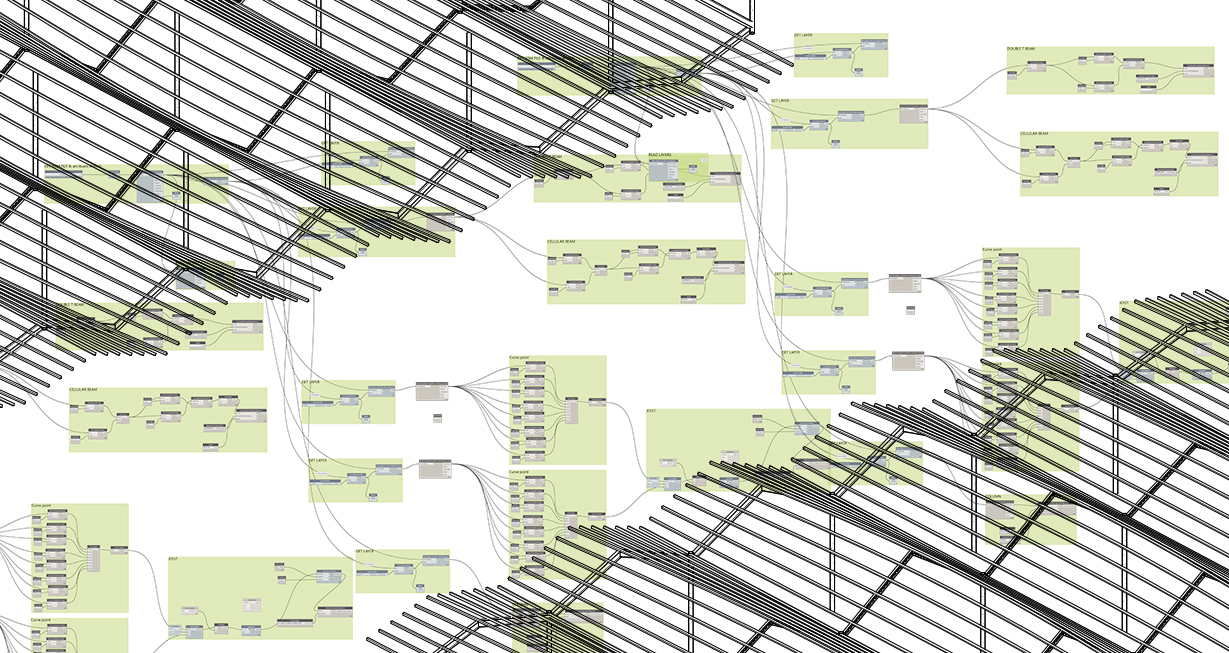

platform we bypass this process through Dynamo, where we can establish a direct link with Rhinoceros through Rhynamo, which directly reads the created .3dm file and allows us to transfer the geometrical data but also the non-geometrical data inserted inside the geometries themselves through Elefront (gh add-on).
